ResMed AirFit N20 Frame System: The Modular Core of Your Nasal Mask — Frame, Cushion, Elbow, and Short Tube Without the Headgear

The ResMed AirFit N20 is designed as a modular system — each component has its own replacement schedule and can be renewed independently without purchasing a complete new mask. The cushion replaces monthly. The headgear replaces every six months. The frame — the structural housing that carries the InfinitySeal cushion, holds the magnetic clip anchor points, routes the tubing through the quick-release elbow and Flexi-Tube, and positions everything below the eyes for an unobstructed field of vision — replaces annually or when physical damage makes its continued use impractical.

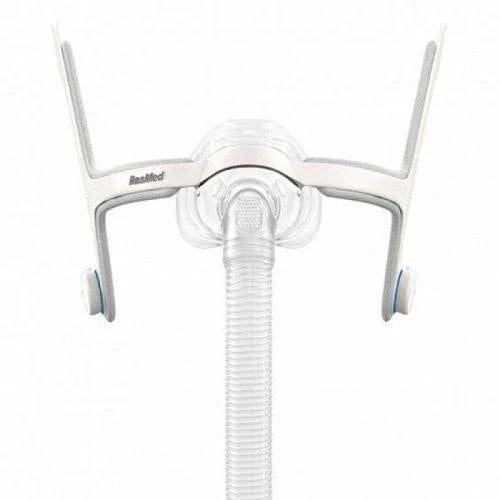

The AirFit N20 Frame System (Frame SYS) is the component-level purchase that renews this structural core: it includes the frame itself, an InfinitySeal cushion in the selected size, the quick-release elbow, and the short Flexi-Tube. Headgear is not included — it is purchased separately and typically lasts longer than the frame's replacement cycle. Available in Small, Medium, and Large (and For Her Small) on Swadesiicart, the Frame SYS is the right purchase when the frame needs renewal but the headgear still has useful life remaining.

ResMed's AirFit N20 Frame System, available on Swadesiicart in S/M/L and For Her, is the complete N20 mask body — flexible frame with integrated padding, InfinitySeal cushion, quick-release elbow, and short Flexi-Tube — without headgear. The modular N20 annual frame renewal for sustained therapy comfort and structural performance.

What the Frame System Includes — and What It Does Not

CONTENTS: (1) AirFit N20 mask frame with integrated padding — the structural housing. (2) InfinitySeal silicone nasal cushion in your selected size (S, M, or L). (3) Quick-release elbow — the tubing connector with 360° rotation and squeeze-release mechanism. (4) Short Flexi-Tube — the flexible short tube connecting the elbow to the CPAP hose. NOT INCLUDED: Headgear/straps — purchase the AirFit N20 Replacement Headgear separately if needed. The Frame SYS is the right purchase when headgear is still in good condition but the frame, cushion, elbow, or short tube needs renewal.

The Frame: What It Does and Why It Matters

Below-the-Eye Positioning — The Design Choice That Changes Everything

The most consequential design decision in the N20 frame is where it sits on the face. The frame rests below the eyes — it does not extend up to the forehead or bridge the nose with a separate pad the way older CPAP nasal mask frames did. This under-eye positioning has several practical consequences that N20 users appreciate after using frames that required forehead pads:

•      Full unobstructed vision: With no frame or pad above the nose bridge, the N20 frame allows users to read, watch television, look at a phone screen, or maintain their normal evening routine while wearing the mask before falling asleep. For the diaspora professional who falls asleep reading or watching content, this practical freedom makes mask compliance significantly more comfortable

•      No forehead pressure points: Traditional CPAP frames with forehead pads create pressure on the forehead skin that produces its own set of marks and discomfort. The N20's elimination of the forehead contact point removes this pressure entirely — the only facial contacts are the cushion at the nose and the frame's padded lower edge on the cheeks

•      Side-sleeping compatibility: A forehead pad presses directly into the pillow when sleeping on the side, creating rotation forces that pull the mask off-face. The N20's under-eye frame has a much smaller footprint, making it significantly more side-sleeper-friendly

•      Reduced frame marks: Less frame contact means fewer morning facial marks. The integrated padding on the frame's cheek contact areas further minimises the marks that do occur

Integrated Padding — Softness Where the Frame Meets the Face

The N20 frame incorporates integrated padding at its facial contact points — the frame body is not bare rigid plastic against the skin. This integrated padding distributes the frame's contact pressure over a larger surface area, prevents the sharp-edge sensation of unpadded plastic, and provides the soft feel that allows the mask to be worn comfortably during waking pre-sleep time without the urgency to remove it. The padding is built into the frame moulding rather than being a separate foam attachment — it does not peel off or degrade separately from the frame itself.

Flexible Soft Material — Adapting to Movement

The N20 frame is moulded from a soft, flexible material that bends and gives as the user changes sleeping position. This flexibility serves two functions: it maintains the cushion's contact with the face even as the head shifts position during sleep (the frame flexes to follow rather than creating rigid leverage that would break the seal), and it prevents the frame from becoming a pressure point when pressed into a pillow during side or stomach sleeping. The flexibility is also why the frame can adapt to different facial profiles without requiring size-specific frame adjustment beyond the cushion size selection — the same frame profile accommodates a range of facial shapes by flexing to conform.

Magnetic Clip Anchor Points

The frame incorporates the magnetic clip anchor points that connect to the N20 headgear's magnetic clips. These anchor points are recessed into the frame's side edges, allowing the headgear clips to snap on with a tactile click that confirms secure connection. When the headgear clips are attached, they locate the headgear precisely at the correct position on the frame — there is no adjustment required beyond the headgear strap tension. When the frame is replaced, the same headgear continues to work at the same settings.

The Quick-Release Elbow: The Feature That Solves the Night-Trip Problem

The quick-release elbow is the component that transforms the practical experience of wearing a CPAP mask overnight. Without it, getting up during the night for a bathroom trip or any other reason requires either sleeping with the tubing connected and risking tangles, or fully removing the mask and then replacing and re-fitting it on return — with the seal adjustment that requires, typically at 2-3am with poor visibility.

The quick-release elbow solves this with a single squeeze: pinch the tabs on the elbow, and the CPAP tubing disconnects from the mask. The mask stays on the face at its adjusted settings. The headgear, frame, and cushion remain fitted exactly as they were. On return, slide the tubing back onto the elbow until the click confirms reconnection, and therapy resumes from the machine's saved settings. The elbow rotates 360° — it can be oriented in any direction relative to the face, allowing the tubing to route upward over the head (standard), down the chest, or to either side depending on preference and sleeping position.

The 360° Rotation Advantage: The quick-release elbow's 360° rotation, combined with an integrated independent tube swivel, means the CPAP tubing can follow the user's head movement through the full range of sleeping positions without creating the tubing tension and drag that pulls older CPAP masks off-face. Active sleepers and those who change position multiple times per night benefit most from this full rotation range.

The Integrated Flexi-Tube: Freedom of Movement

The short Flexi-Tube included with the Frame SYS is a lightweight, flexible extension tube between the quick-release elbow and the main CPAP hose connection. Its stretch-and-bend design provides an additional degree of freedom between the mask and the main tubing — the Flexi-Tube absorbs small head movements and position changes without transmitting the full tubing tension to the mask frame. This reduces the mask-drag effect that occurs when the main CPAP tubing pulls on the mask as the user moves, and extends the useful range of comfortable movement during therapy.

When to Replace the Frame System

The frame has the longest replacement cycle of any N20 component — typically annual — but several specific conditions indicate earlier replacement:

•      Cracked or broken frame: The flexible frame material can crack with age, impact, or repeated rough handling. Any visible crack in the frame body compromises the structural integrity that maintains the cushion's position and the seal's stability — replace immediately.

•      Degraded integrated padding: The integrated padding, while more durable than separate foam attachments, can compress and thin over time with nightly use. When the padded areas feel noticeably thinner and firmer, the protective function has diminished — replace to restore the soft-contact experience.

•      Worn elbow connection: The quick-release elbow can wear at its connection point, losing the tactile click that confirms secure seating or becoming difficult to release. A loose or worn elbow creates tubing instability during sleep — replace the Frame SYS rather than just the elbow (which is not sold independently on most platforms).

•      Insurance annual schedule: US health insurance typically covers CPAP frame replacement annually — aligning with the practical replacement cycle. If your insurance provides annual frame coverage, using the benefit maintains optimal equipment condition without cost.

•      Mask repositioning without clear cause: If the mask increasingly shifts from its initial position during the night despite fresh headgear and cushion, and the cause is not identifiable, frame wear that has altered the frame's geometry may be the explanation — replacing the Frame SYS eliminates this variable.

The N20 Modular Ecosystem: Smart CPAP Supply Management

Understanding the N20's modular replacement structure allows users to maintain optimal mask performance without unnecessary full-mask purchases:

The modular approach means the highest-cost component of any CPAP mask — the frame and its electronics-free precision moulding — only needs to be purchased once annually, while the lower-cost high-wear components (cushion, headgear) are renewed at their appropriate more frequent intervals. This is both more economical than replacing the full mask and more environmentally responsible than discarding components that still have useful life.

INTERNAL LINKING SUGGESTIONS:

•      Link [https://swadesiicart.com/products/airfit-n20-frame-sys?_pos=10&_sid=27a4629df&_ss=r]

Frequently Asked Questions About the ResMed AirFit N20 Frame System

Q1. Should I buy the Frame System or the standalone cushion? What's the difference?

The standalone AirFit N20 Cushion (sold separately on Swadesiicart) replaces only the silicone InfinitySeal cushion — it does not include a new frame, elbow, or short tube. It is the right purchase for monthly cushion renewal when the frame, elbow, and short tube are all still in good condition. The Frame System includes the frame + cushion + elbow + short tube, and is the right purchase when the frame itself needs renewal (annually or when damaged) or when the elbow or short tube is worn. If you only need the cushion, buy the standalone cushion. If the frame is due for annual renewal or has a specific defect, buy the Frame SYS which includes a fresh cushion along with the frame components.

Q2. My elbow makes a rattling noise or feels loose. Do I need the full Frame System?

A loose, rattling, or click-failing elbow is one of the specific indicators for Frame System replacement. The quick-release elbow is integral to the N20 frame assembly — it is not sold as a standalone replacement part on most platforms. The Frame SYS is the practical replacement unit that includes a fresh elbow alongside the frame and cushion. If the only problem is the elbow and the frame and cushion are otherwise fine, replacing the Frame SYS is the correct approach — it is the unit of replacement that includes the elbow as part of the assembly.

Q3. Will the Frame System work with my existing headgear?

Yes — provided your headgear is for the AirFit N20 or AirTouch N20 mask. The frame's magnetic clip anchor points are standardised across all N20 frame sizes — your existing headgear's magnetic clips will connect to the new Frame SYS's anchor points exactly as they connected to the old frame. There is no headgear adjustment required when replacing the frame. After the frame replacement, the headgear should sit at the same strap settings as before, maintaining your customised fit without re-adjustment.

Q4. Is the Frame System the same as the 'Complete System' sold elsewhere?

No — these are two different products. The AirFit N20 Complete System (also called the full mask kit or the Nasal Mask with Headgear) includes the frame, cushion, elbow, short tube, AND headgear — everything needed for a new mask user. The Frame System (Frame SYS) includes the frame, cushion, elbow, and short tube without the headgear — it is the replacement unit for existing N20 users whose headgear still has useful life. If you are setting up an N20 mask for the first time or need to replace headgear and frame at the same time, the Complete System or a Frame SYS plus separate Headgear purchase is the appropriate choice. For annual frame renewal when the headgear is still good, Frame SYS is the cost-efficient option.

The Structural Core. Renewed Annually. The Modular Approach to CPAP Maintenance.

The AirFit N20's modular design is one of its most practical features for long-term CPAP users — it makes sustained therapy quality achievable without the expense and waste of replacing the complete mask every time a single component wears out. The Frame SYS represents the annual structural renewal: a fresh frame with integrated padding, a new InfinitySeal cushion, a fresh quick-release elbow, and a new short Flexi-Tube. Your existing headgear connects to it immediately. Your existing CPAP machine settings are unchanged. You begin the next year of therapy with the structural core of your mask at optimal condition.

Frame + InfinitySeal cushion + quick-release elbow + short Flexi-Tube. No headgear. S/M/L + For Her Small. Integrated padding. Below-eye positioning. 360° elbow rotation. Fits AirFit N20 + AirTouch N20. Annual replacement. Genuine ResMed. Shop ResMed AirFit N20 Frame System on Swadesiicart now — free shipping on orders above $55, SSL-secured checkout, and 14-day hassle-free returns. Pair with AirFit N20 Replacement Headgear for complete mask renewal.

ResMed   |   AirFit N20 Frame System (Frame SYS)   |   Frame + InfinitySeal Cushion + Quick-Release Elbow + Short Flexi-Tube   |   Headgear NOT Included   |   Sizes: Small / Medium / Large / For Her Small   |   Compatible: AirFit N20 + AirTouch N20   |   Annual Replacement   |   Therapy Pressure: 4-30 cm H₂O
